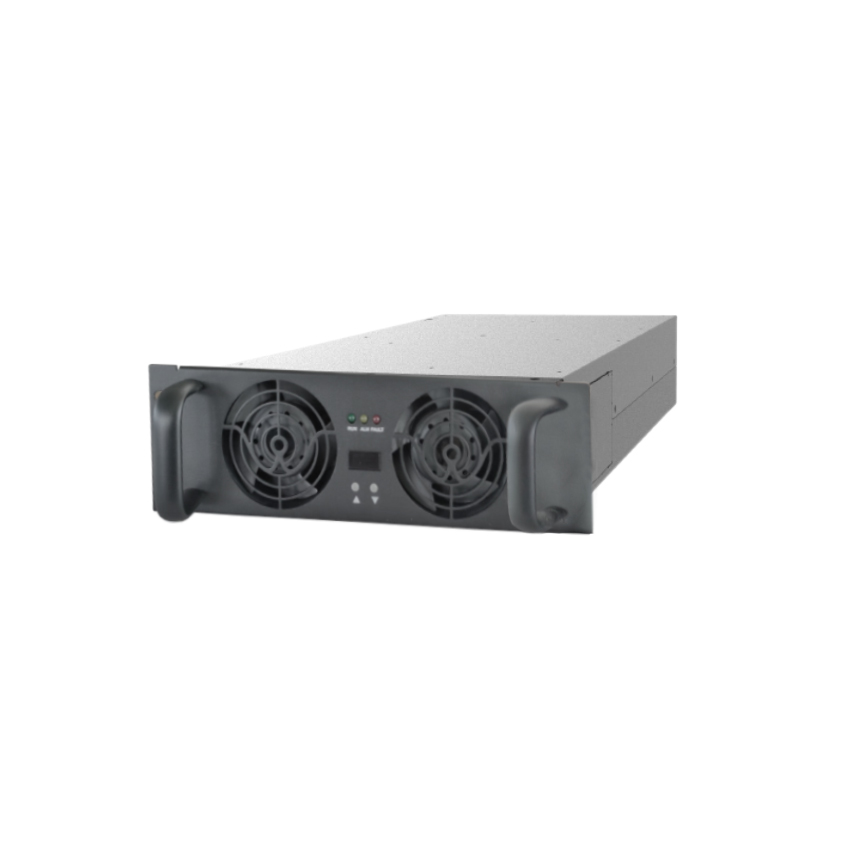

MXR100050B

50kW EV Charger Module

Ultra-wide output voltage range.200~1000VDC.suitable for a wide range of EVs.

Ultra-high output power. in 300v-1000v output voltage,50kW constant power output;

Wide operating temperature range at -40C-+80℃.

Full load efficiency is higher than 96%. high efficiency in the whole the working range, and more power saving.

Ultra-low noise, enhance user charging experience.

The current in the low-voltage area does not shrink, and the charging speed is faster;

The module is built with residual pressure relief loop to reduce system cost and improve system reliability.

MXR100040

40kW EV Charger Module

The MXR100040 is a matural 40kw charging module designed for high power charging stations. Rated output power is 40 kw, with 285VAC-475VAC, three-phase, the output volage range is 100VDC-1000VDC, the maximum output curent is 133.3 A.The charging module is with the isolated controller area netwok (CAN) communication ptotocol communicating with the system monitoring module through the CAN protocol. The output voltage mode of the charging module can be set on the system monitoning module to perfomm volage regulation, current limiting, power on/power off and other operations on the charging module.
