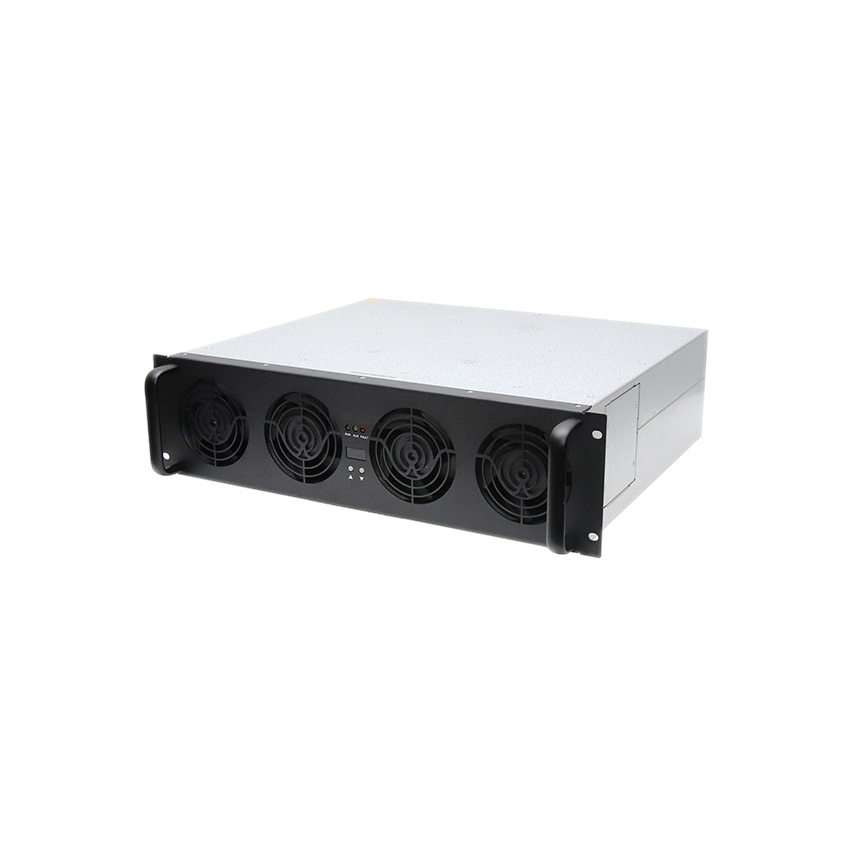

The MXR6020B 20kW AC-DC rectifier module is designed for next-generation DC EV fast charger systems, supporting both AC input (270–530Vac) and DC input (300–800Vdc) for flexible deployment across different charging infrastructures. Delivering up to 20kW output power, the module features wide 0–60Vdc continuously adjustable output voltage and 0–500A adjustable current, enabling stable and precise charging for electric motorcycles, low-voltage EV packs, AGVs, and energy storage applications.

With >94.5% peak efficiency, PF ≥ 0.99, low noise ≤60dB, THD ≤3%, and support for 1.3× overload for 1 minute, MXR6020B ensures high reliability under demanding fast-charging conditions. Its operating range of -40°C to +75°C (full power below 60°C) makes it suitable for harsh environments. This compact, high-performance rectifier module is ideal for manufacturers building modular DC EV fast chargers, battery testing equipment, or low-voltage DC power supply platforms.

Characteristic Curve
