MXR100080B-DCs 80kw dc dc converter performance high voltage ev charger module
-
The MXR100080B-DCs is a high-performance 80kW high-voltage DC-DC converter module designed for ultra-fast EV charging architectures and advanced energy systems. It supports a 740–890VDC input and delivers a wide 200–1000VDC output, enabling compatibility with modern high-voltage EV platforms and large battery packs.
Built with a high-frequency isolated topology, the module ensures stable and safe energy transfer while achieving an impressive >98.5% peak efficiency, reducing energy loss and enhancing overall charger performance. The compact and lightweight design (<20 kg) allows deployment in high-density charging cabinets.
Output precision is maintained with ±0.5% voltage regulation, ±1% current accuracy, ripple ≤1%, and current imbalance ≤5%, ensuring consistent charging across parallel modules. CAN-Bus communication supports real-time control, diagnostic feedback, and coordinated operation in multi-module systems.
With an operational range of –20°C to +75°C and derating protection above 50°C or 2000 m altitude, the MXR100080B-DCs offers reliable performance in demanding environments. Its scalability (up to 60 units) makes it suitable for high-power EV charging stations, megawatt charging systems, and high-voltage DC distribution.
Product Characteristic
-
-
Input Voltage740VDC～890VDC
-
Input Current107A Max
-
Output Power80kw
-

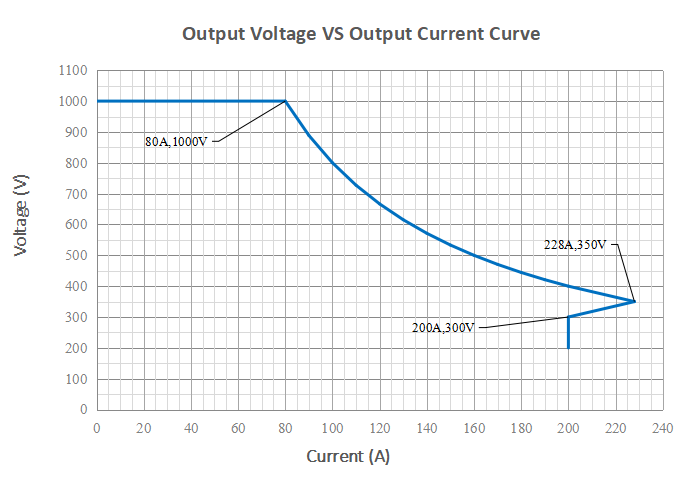

Output Voltage Range200VDC～1000VDC
-
Output Current Range228A Max
-
Voltage stabilized accuracy≤±0.5%
-
Current stabilized accuracy≤±1% (output load 20%~100% rated range)
-
Current Sharing Imbalance≤5%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue－20℃～＋75℃, Above 50℃ will be derated.
-
Altitude≤2000m（When altitude is above 2000m, derating is required)
-
Size(W×D×H)355×485×87mm
-
Weight<20kg
-
Efficiency(full load)>98.5%
-
Isolated MethodHigh Frequency Isolation
-
Cooling ModeAir Cooling
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
