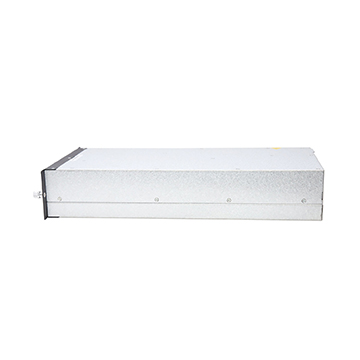

MXR100020 EV charging module
The 20KW electric vehicle charging pile charging module offers a faster charging speed and shorter charging time for electric vehicles. It achieves an impressive 95.5% charging efficiency, effectively converting electric energy into the energy storage system of the electric vehicle, reducing energy loss and improving charging speed. We also provide professional and high-quality after-sales service and technical support, as well as customized service to meet your needs.
-
Main features
- Wide output voltage range,50~1000VDC, suitable for a wide range of EVs.
- Wide operating temperature range at full power, -40℃～60℃;
- Full load efficiency is higher than 95.5%, high efficiency in the whole working range, and more energy-saving;
- Ultra-low standby power consumption, the whole series of products are controlled within 8W;
- Ultra-low noise, improve user charging experience;
- The current in the low-voltage area does not shrink, and the charging speed is faster；
- The module is built with residual pressure relief loop to reduce system cost and improve system reliability.
Excellent advantages
- Ultra-high
Full-load operating temperature 60℃
MXR100020 can output full power at 60℃, effectively ensuring the charging speed in high temperature enviroment.
- Ultra-wide
Constant power range 300V-1000V
MXR100020 is a 20kw charging module that fully meets the wide-range constant power requirements of the state Grid.
Characteristic Curve
Detailed function
- Hot swap
The charging module uses plug-in technology, which is convenient for installation and maintenance.
- Current sharing
The charging modules can automatically share current, and the unbalance is less than 3%.
- Input over/under voltage protection
- Output over/under voltage protection
- Over temperature protection
- Short circuit protection
-
-
Output Power20kw
-
Input Voltage285-475Vac, three-phase + PE
-
Input Current<40A
-
Grid Frequency45-65Hz
-
Power Factor≥0.95(4kw≤output power≤10kw); ≥0.98(10kw≤output power≤20kw)
-
ITHD≤5%(10kw≤output power≤20kw)
-
Voltage Range50-1000Vdc
-
Current Range0-67A continuously regulated
-
Rated Current20A
-
Voltage stabilized accuracy≤±0.5%(regulated state, input voltage 323Vac~456Vac, output voltage 200Vdc~1000Vdc, output current 0~Rated current value)
-
Current stabilized accuracy≤±1%(steady current state, input voltage 323Vac~456Vac, output voltage 200~1000Vdc, output current 20% rated current~100% rated current value)
-
Current Sharing Imbalance≤±5%
-
Ripple Peak to Peak≤±1%(regulated state, input voltage 323Vac~456Vac,output voltage 200Vdc~1000Vdc, output current 0~rated current )
-
Operating Temperatue-40℃～75℃, output derating above 60℃
-
Storage Temperature-40℃～+75℃
-
Relative Humidity≤95% RH without condensation
-
Altitude≤2000m without detating, ＞2000m, the working temperature decrease by 1℃ for every 100 meters
-
MTBF>500000 hours
-
Size(W×D×H)218×459×84mm
-
Weight≤12kg
-
Efficiency(full load)>95.5%
-
Cooling ModeFan cooling
-
Standby Power consumption8.5W+/-0.5W
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
IndicatorGreen: normal operation Yellow: alarm Red: fault
-
CertificationCE/Dekra/EMC
-
