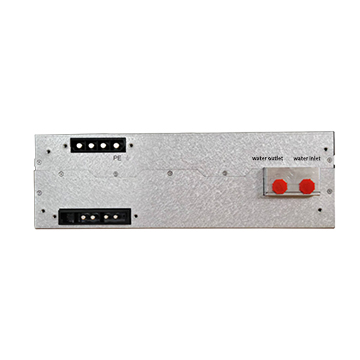

MXR100060BL 60KW 1000V liquid-cooling fast charging ev charger module
-
Product Introduction
MXR100060BL is a liquid-cooled DC power supply that uses the third-generation semiconductor silicon carbide as the core device and new power electronics technology, and has good performance parameters. It is mainly used in the fields of DC fast charging and energy storage of electric vehicles.Performance Curve
Module FeaturesLiquid cooling, glue-filling, Zero noise, high protection.Ultra-wide input voltage rangeInput voltage range: 260Vac~530Vac.Output voltage range: 200~1000Vdc.Ultra-wide constant power rangeOutput constant power range: 300~1000Vdc.Super high work efficiencyThe peak working efficiency is greater than 96.5%.
SIC devices combined with digital optimization algorithms.Module ApplicationLiquid-cooled car charging modules are charging devices with a liquid cooling system that are used to provide charging services for electric vehicles. Liquid cooling technology can help control the temperature of charging equipment and improve efficiency and reliability. The following is the application scope and description of liquid-cooled car charging modules:
Fast charging stations: Liquid-cooled car charging modules are widely used in fast charging stations, which can provide high-power and high-efficiency charging for electric vehicles, shorten charging time, and improve charging efficiency.
Automakers: Automakers integrate liquid-cooled car charging modules into their electric vehicle products to provide a faster and more reliable charging experience while ensuring the stability and durability of charging equipment.
Commercial use: Liquid-cooled car charging modules are suitable for commercial charging facilities, such as parking lots, shopping malls and other public areas, to provide electric vehicle owners with efficient and convenient charging services.
Energy management system: This liquid-cooled charging module can also be used in energy management systems to provide charging functions for smart microgrids or distributed energy systems, helping to balance energy supply and demand.
Research and development: The application of liquid cooling technology in the field of electric vehicle charging provides a better research platform for research institutions and laboratories, promoting the innovation and development of electric vehicle charging technology.
In general, liquid-cooled car charging modules are widely used in fast charging, automobile manufacturing, commercial applications, energy management, and research and development, providing important support for the development of the electric vehicle industry. -
-
Output Power60kw
-
Input Voltage260-530Vac, three-phase + PE
-
Input Current<115 Arms, 45Hz~65Hz
-
Power Factor>0.99(Load≥50%)
-
ITHD<5%(Load≥50%)
-
Output Voltage Range200-1000Vdc
-
Output Current Range0~200A (continuously adjustable)
-
Voltage stabilized accuracy<±1%
-
Current stabilized accuracy<±0.5%
-
Ripple Peak to Peak<1%
-
Operating Temperatue-40~70℃
-
Storage Temperature-40~70℃
-
Relative Humidity<95%
-
AltitudeFull load output below 2000m
-
Size(W×D×H)410×500×132mm
-
Weight<48kg
-
Efficiency(full load)96.5%
-
Cooling ModeLiquid cooling
-
Communication MethodCAN
-
Parallel Module Quantity≤60 pieces
-
Standby Power consumption<12W
-
