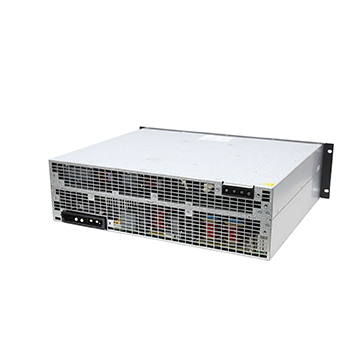

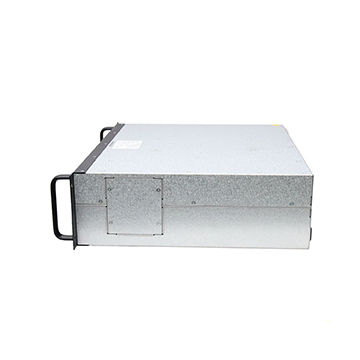

MXR200050B 50kW 2000V ev car fast charging power module
The MXR200050B is a high-performance 50kW charging power module designed for fast charging stations. It supports both AC and DC input with an ultra-wide voltage range (0-2000V) and >97% efficiency. Featuring high-frequency isolation for safety and stability, it integrates seamlessly via the CAN communication protocol. Ideal for EVs, buses, trucks, and mining vehicles, it delivers reliable and efficient charging.
-
Module Features:
Ultra-High Efficiency: >97%
Ultra-Wide Working Voltage Range (0-2000V)
Ultra-Wide Constant Power Range(500-2000V)
Ultra-High Reliability(MTBF>1,000,000 hours)
Compatible for both of AC Input and DC Input

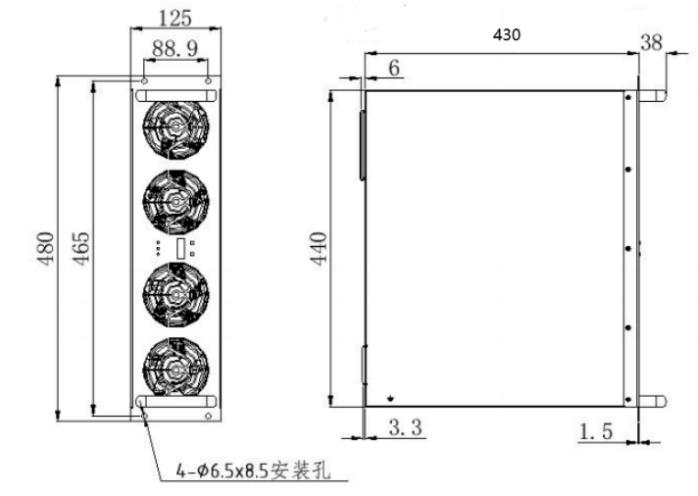

Module Dimension:
Characteristic Curve:
-
-
Input Voltage260Vac～530Vac, 3 Phase + PE（Also be compatible for DC Input）
-
Input Current<95A
-
Output Voltage Range0～2000Vdc Continuously Adjustable
-
Output Current Range0-100A continuously regulated
-
Output Power50kW
-
Efficiency(full load)>97%
-
Noise≤55dB（Silent Mode）
-
Power Factor≥0.99(Load≥50%)
-
ITHD≤3% (Load ≥50%)
-
Operating Temperatue-40~75℃
-
Altitude≤ 5000m
-
MTBF>1000000 hours
-
Voltage stabilized accuracy≤±0.3%
-
Current stabilized accuracy≤±0.5%
-
Ripple Peak to Peak≤0.3%
-
Communication MethodCan & 485
-
Size(W×D×H)440×430×125mm
-
Weight<24kg
-
