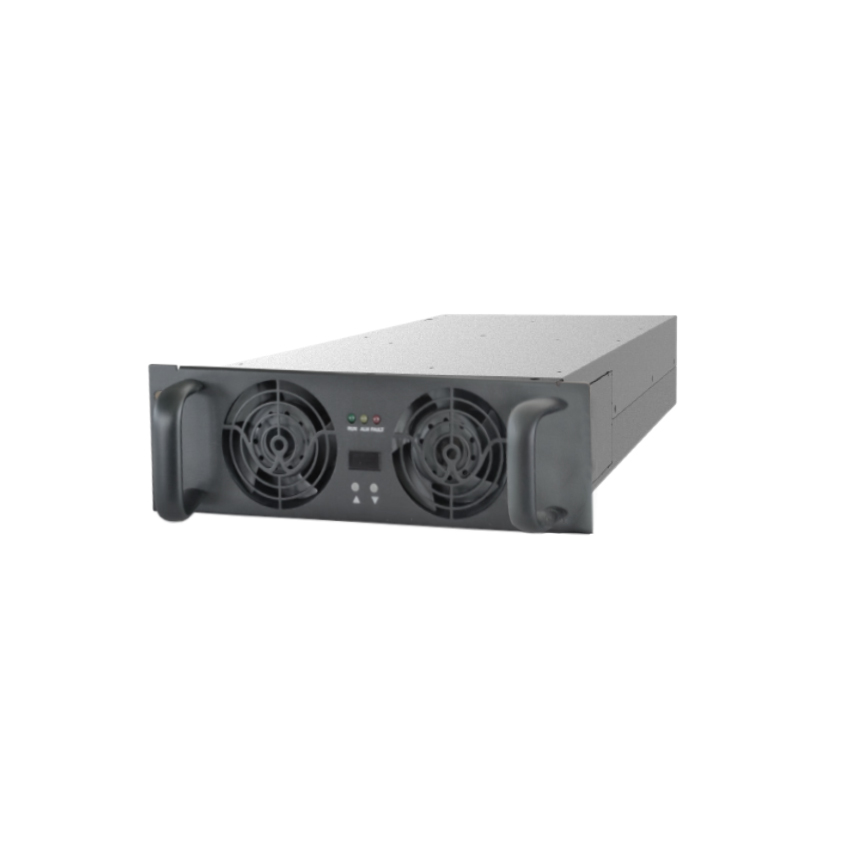

MXR85350-DC 20kW fast charger dc dc power module
-
The 20kW MXR85350-DC DC-DC power module is optimized for EV fast chargers, offering ultra-high output current (350A), wide input range (500–800VDC), and an adjustable 0–85VDC output voltage. Built for high reliability (MTBF >1 million hours) and ultra-high power factor (0.99), it ensures stable, efficient, and safe power conversion for electric vehicle charging stations, battery storage systems, and industrial high-current DC applications. Its compact design supports easy integration in various power systems.
Key Features:
-
Ultra-high output current up to 350A
-
High reliability, MTBF > 1,000,000 hours
-
Ultra-high power factor: 0.99
-
Compatible with both AC and DC input
-
Wide output voltage range: 0–85VDC
-
Low input current: <40A
-
Compact, efficient, and highly integrable design
Typical Applications:
- EV fast charging systems
- DC charging stations for electric buses and trucks
- High current industrial power supplies
- Heavy-Duty EV Charging Systems
- DC Distribution Systems
- Rail Transit & Electric Marine Charging Systems

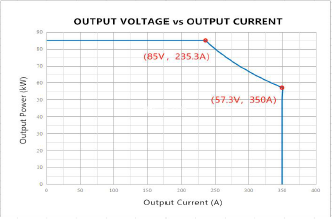

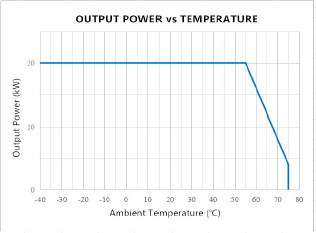

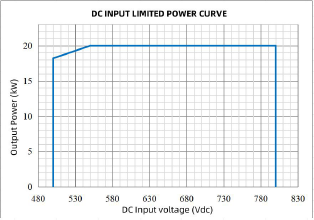

Characteristic Curve:
-
-
