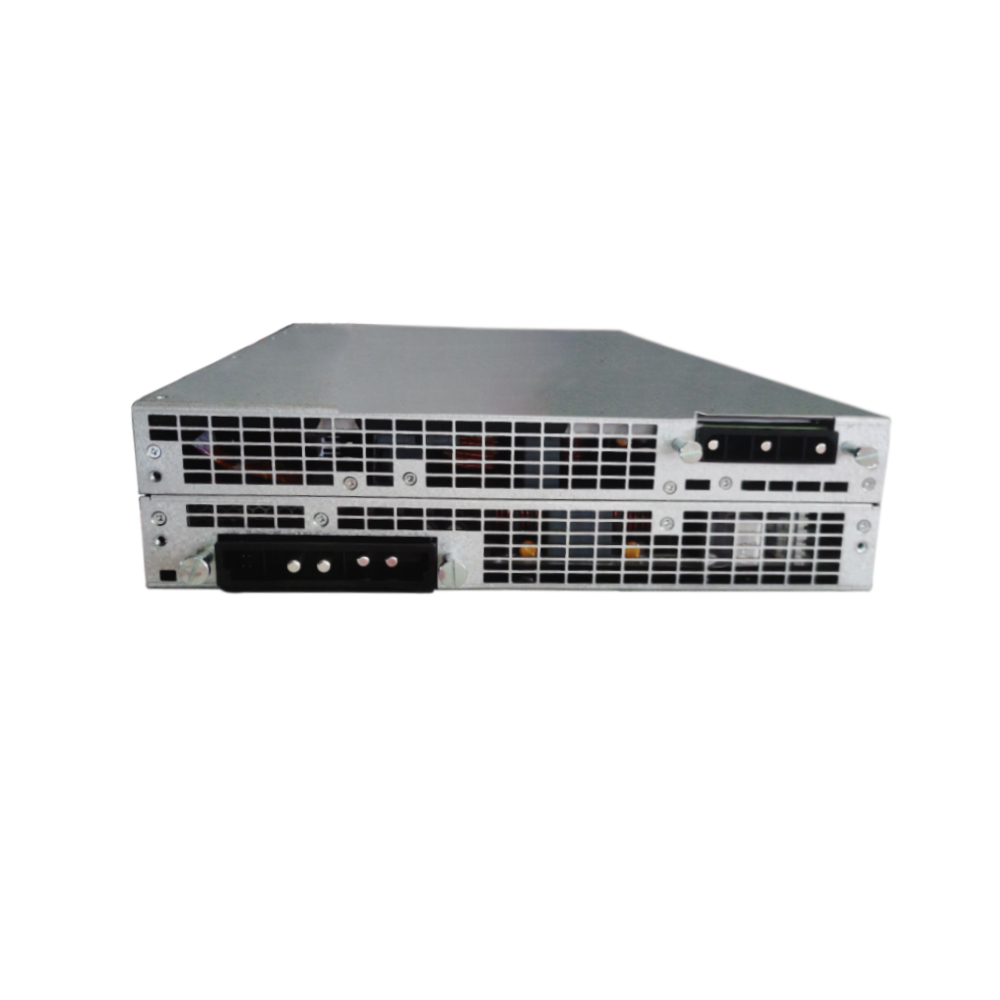

MXC150050B-MG 50kW isolated power supply module bidirectional dcdc converter
The MXC150050B-MG is a cutting-edge isolated bidirectional DC-DC power module, engineered for next-generation DC microgrid systems. With real-time voltage regulation and adaptive control capabilities, it enables dynamic energy flow between different DC domains. Supporting ultra-high input voltage up to 1500V and ultra-wide voltage range (200–920V), it is ideal for high-power energy storage, renewable integration, and intelligent DC infrastructure.
-
High frequency isolated bidirectional DC/DC module
Isolated Bidirectional DC-DC Converter | 1500V Isolated Power Module
- New Product Release: Cutting-edge 50kW high-voltage bidirectional DC/DC module
- Real bidirectional control with ultra-fast response for modern DC systems
- Supports future-oriented DC microgrid infrastructures
- Glue-filled for enhanced thermal protection, rugged design for industrial deployment
- Supports green energy initiatives like PV + ESS integration
Key Features:
Ultra-high voltage support: Up to 1500VDC
Bidirectional energy flow with fast response
Integrated DSP with user-definable control logic for flexible system integration
High-frequency isolated topology for safety and reliability
Ultra-high efficiency: Up to 98%
Wide voltage range: 200V–920V
Glue-filling process for enhanced protection and thermal management
Typical Applications:
DC microgrid energy balancing and conversion
Energy storage system (ESS) integration
PV-ESS hybrid systems
Smart industrial DC bus systems
Fast bidirectional charging infrastructures
High-voltage DC power distribution and conversion
-
-
High Voltage Side Voltage Range1000VDC~1500VDC
-
High Voltage Side Max Current50A
-
High Voltage Side Stabilized Voltage Precision＜±0.5％
-
High Voltage Side Current Sharing Imbalance≤5%
-
High Voltage Side Stabilized Current Precision≤±1% (Output loading 20%~100% rated range)
-
Low Voltage Side Voltage Range200VDC~920VDC
-
Low Voltage Side Max Current112A
-
Low Voltage Side Stabilized Voltage Precision＜±0.5％
-
Low Voltage Side Stabilized Current Precision≤±1％ (Output loading 20％～100％ rated range)
-
Low Voltage Side Ripple Peak≤1%
-
Low Voltage Side Current Sharing Imbalance≤5％
-
Output Power50kW
-
Size(W×D×H)345×460×87mm
-
Weight<17.5kg
-
Efficiency(full load)>99%
-
Isolated MethodHigh Frequency Isolation
-
Cooling ModeFan cooling
-
Communication MethodCAN Communication
-
Parallel Module Quantity≤60 pieces
-
Operating Temperatue－20℃～＋75℃, Above 50℃will be derated.
-
Altitude≤ 2000m, output derating above 2000m
-
