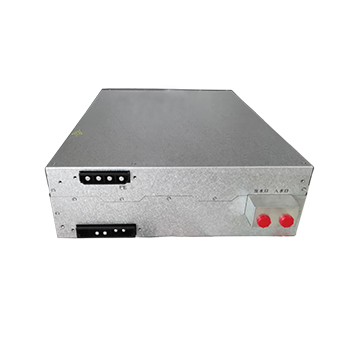

MXR100060BL-DC 60KW liquid cooling dc dc silicon carbide power modules

MXR100060BL-DC is a 60kW liquid-cooled DC-DC power module based on advanced silicon carbide (SiC) technology. It offers an ultra-wide input voltage range (450–920V), wide output range (200–1000V), and constant power output from 300–1000V. With peak efficiency over 97.5%, zero-noise cooling, glue filling, and anti-condensation design, it is ideal for EV fast charging and energy storage applications.
  • Product Introduction
    The MXR100060BL-DC is a high-performance 60kW liquid-cooled DC-DC power module built with advanced silicon carbide (SiC) technology. Designed for electric vehicle (EV) fast charging and energy storage applications, it features ultra-wide voltage input/output ranges, high constant power operation, and peak efficiency exceeding 97.5%. With a noise-free liquid cooling system and robust anti-condensation design, this module is ideal for demanding environments requiring efficient and reliable high-voltage DC conversion.
    Module Features
    ◆ Liquid cooling, glue-filling
    Zero noise, high protection.
    ◆ Ultra-wide input voltage range
    Input voltage range: 450Vac~920Vdc.
    ◆ Ultra-wide output voltage range
    Output voltage range: 200~1000Vdc.
    ◆ Ultra-wide constant power range
    Output constant power range: 300~1000Vdc.
    ◆ Super high working efficiency
    The peak working efficiency is greater than 97.5%.
    ◆ Anti-condensation design

    Performance curve

    Output Characteristic Curve

    Temperature derating curve

    DC input voltage derating curve

    • Input Voltage
      450Vdc~920Vdc, +/- wiring harness+PE
    • Input Current
      <100A
    • Input current ripple
      <7 Arms
    • Output Power
      60kw
    • Output Voltage Range
      200VDC~1000VDC
    • Output Current Range
      0~200A
    • Voltage stabilized accuracy
      <±0.5%
    • Current stabilized accuracy
      <±1%
    • Liquid Flow
      ≥8L/min
    • Water pressure drop
      <50kPa @10LPM
    • Maximum inlet pressure
      500kPa
    • Coolant
      A 1:1 mixture of ethylene glycol and water, or pure (deionized) water.
    • Inlet temperature
      -40~70℃ (-40~50℃, can operate at full power, 50~70℃ derating operation)
    • Altitude
      Full load output below 2000m
    • Operating Temperatue
      Temperature: -40~70℃ Humidity: <95%
    • Storage Temperature
      Temperature: -40~70℃ Humidity: <95%
    • Size(W×D×H)
      410×500×132mm
    • Weight
      <47kg
    • Efficiency(full load)
      >97.5%
    • Cooling Mode
      Liquid cooling
    • Communication Method
      CAN
    • Parallel Module Quantity
      ≤60 pieces
    • Standby Power consumption
      <12W
    • Emergency Stop Signal
      When there is no external signal or a 0V external signal, the module operates normally. When a 12V external signal is applied, the module shuts down
