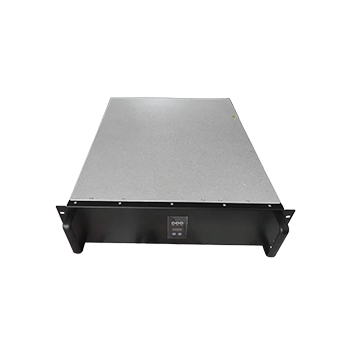

MXR150060BL-DC 60 kw 1500V dc dc converter power supply module
MXR150060BL-DC is a 60kW liquid-cooled DC power supply module designed with advanced third-generation silicon carbide (SiC) devices. Backed by over 10 years of power electronics expertise, it offers a wide input range of 450–920Vdc and an ultra-high output voltage of up to 1500Vdc. With high conversion efficiency, strong environmental protection, and stable performance, it is ideal for high-voltage EV charging and DC energy systems.
-
Product Summary:
The power module leverages third-generation silicon carbide (SiC) semiconductor technology as its core, building on the team’s extensive experience in high-reliability power system design accumulated over more than a decade. Multiple key performance metrics are at the forefront of the industry.
Core Features:
◆ High Reliability:Liquid Cooling + Glue Filling Solution
◆ Superior Conversion Efficiency:Enabled by SiC Devices and Advanced Digital Optimization Algorithms.
Performance curve：

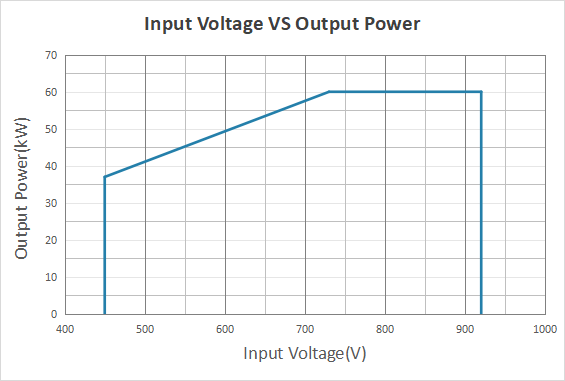

Input Characteristic curv

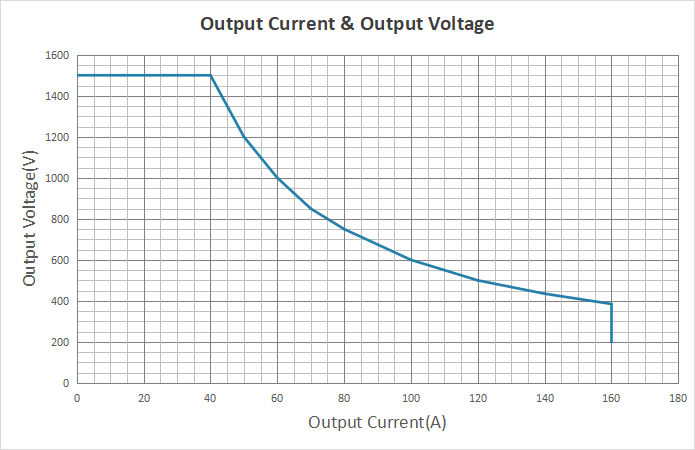

Output Characteristic Curve
Temperature derating curve
-
-
Input Voltage450Vdc~920Vdc
-
Input Current≤82A
-
Output Power60kw
-
Output Voltage Range200～1500Vdc Continuously adjustable
-
Output Current Range0～160A Continuously adjustable
-
Voltage stabilized accuracy≤±0.5%
-
Current stabilized accuracy≤±1%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue-40~70℃
-
AltitudeFull load output below 2000m
-
Size(W×D×H)410×500×132mm
-
Weight<48kg
-
Efficiency(full load)>97%
-
Cooling ModeLiquid cooling
-
Communication MethodCAN
-
Parallel Module Quantity60 (Special customization available)
-
CoolantCoolant Options: Deionized Water, Water-Ethylene Glycol Mixture Inlet Coolant Temperature: Less than 70°C Coolant Flow Rate: 10 liters per minute (L/min)
-
