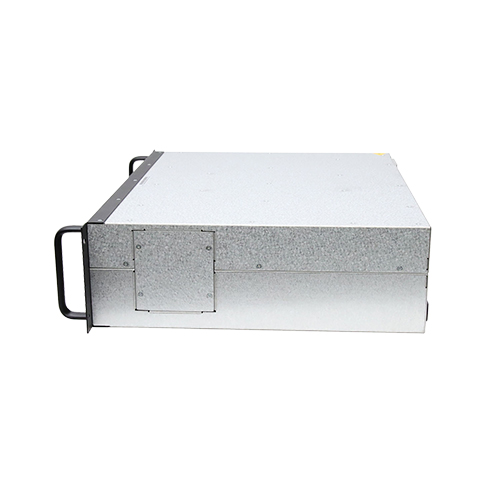

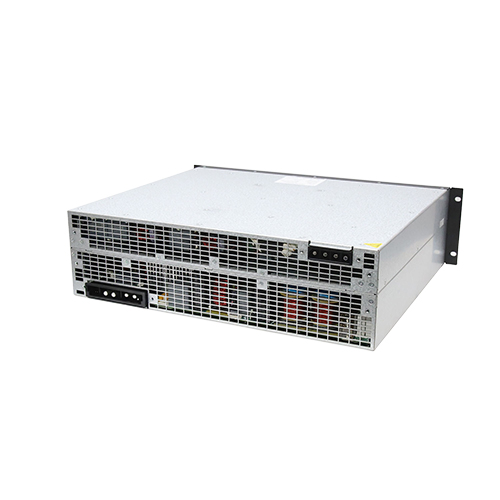

MXR400100B 400V 250A Electrolyzer Power Supply Module for Alkaline Hydrogen Systems
The 100kW MXR400100B is a digitally controlled electrolyzer power supply module delivering 0–400VDC and 250A output. Optimized for low-voltage, high-current alkaline electrolyzers, it ensures stable, efficient, and reliable DC conversion from the AC grid for distributed hydrogen production.
-
Using a gluing potting process, the MXR400100B provides 97.5% efficiency, 71W/in³ ultra-high power density, a power factor of 0.99, and MTBF over 1,000,000 hours.
-
Output Range: 0–400VDC / 0–250A
-
Ideal for alkaline electrolyzers with high current demands.
-
Compact size makes it suitable for on-site and distributed hydrogen production systems.
Applications:
-
Alkaline electrolyzers (low-voltage, high-current)
-
Distributed hydrogen production units
-
On-site hydrogen generation for industry

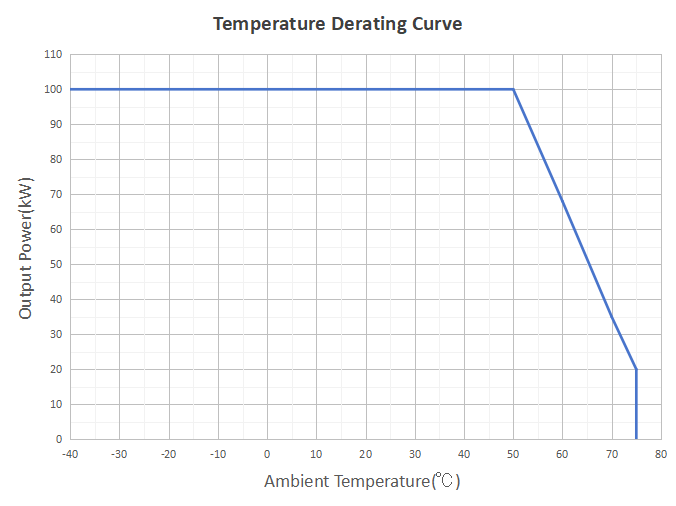

Characteristic Curve
-
-
-
Input Voltage508Vac～622Vac, 3 Phase + PE
-
Input Current＜120A
-
Output Power100kw
-
Output Voltage Range0～400Vdc continuously adjustable
-
Output Current Range0～250A Continuously adjustable
-
Voltage stabilized accuracy≤±0.5%
-
Current stabilized accuracy≤±1%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue-40~75℃
-
Altitude≤ 5000m
-
MTBF>1000000 hours
-
Size(W×D×H)440×430×125mm
-
Weight<26kg
-
Efficiency(full load)>97.5%
-
Cooling ModeFan cooling
-
Communication MethodCAN (Main CAN + Optional CAN)
-
Parallel Module Quantity≤100 PCs
-
Power Factor≥0.99(Load≥50%)
-
ITHD≤5%(Load≥50%)
-
Isolated MethodInput isolation & Output isolation
-
Max Airflow378CFM
-
