MXR100080B-DC 80kW high-efficiency dc-dc power module for energy storage systems
-
Product Details
-
Rated Power: 80kW
-
Efficiency: >98.5%
-
Cooling Method: Fan Cooling
-
Isolation: High Frequency Isolation
-

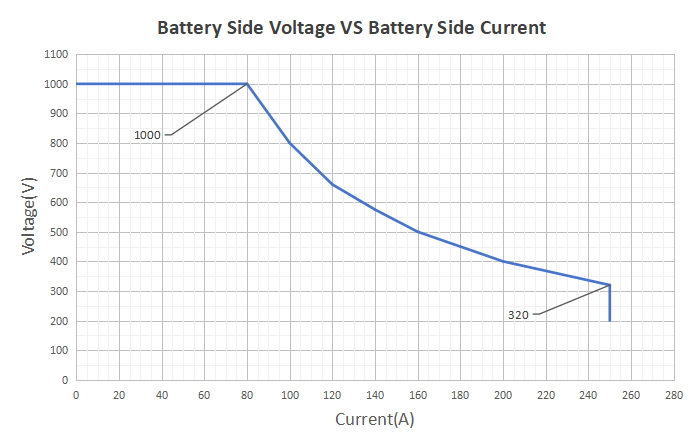

Output (Battery Side): 200–1000VDC, Max 250A
-
Input (Bus Side): 750–850VDC, Max 102A
-
Voltage Regulation: ±0.5%
-
Current Regulation: ±1%
-
Ripple Peak: ≤1%
-
Current Sharing Imbalance: ≤5%
-
Parallel Operation: Up to 60 units
-
Communication: CAN bus
-
Operating Temperature: -30°C to +75°C
-
Dimensions: 400 × 485 × 87 mm
-
Weight: <20kg
The MXR100080B-DC combines intelligent optimization with robust protection through a glue-filling process, ensuring long-term performance even in demanding industrial environments.
Product Description
Engineered for modern energy storage and renewable integration, the MXR100080B-DC provides stable DC power conversion with exceptional efficiency and precision. Its modular and scalable design supports multi-unit parallel operation, making it suitable for large-capacity ESS, DC microgrids, and industrial DC systems. The fan-cooled structure ensures effective thermal management, while high-frequency isolation enhances system safety and performance.
Product Characteristic
-
-
-
Output Power80kw
-
High Voltage Side Voltage Range200VDC～1000VDC
-
High Voltage Side Max Current250A
-
High Voltage Side Stabilized Voltage Precision≤±0.5％
-
High Voltage Side Stabilized Current Precision≤±1% (Output loading 20%~100% rated range)
-
High Voltage Side Ripple Peak≤1%
-
High Voltage Side Current Sharing Imbalance≤5%
-
Low Voltage Side Voltage Range750VDC ~ 850VDC
-
Low Voltage Side Max Current102A
-
Operating Temperatue－30℃~＋75℃, output derating at above 50℃
-
Altitude≤ 2000m, output derating above 2000m
-
Size(W×D×H)400×485×87mm
-
Weight<20kg
-
Efficiency(full load)>98.5%
-
Isolated MethodHigh Frequency Isolation
-
Cooling ModeFan cooling
-
Communication MethodCAN Communication
-
Parallel Module Quantity≤60 pieces
-
