Product Details

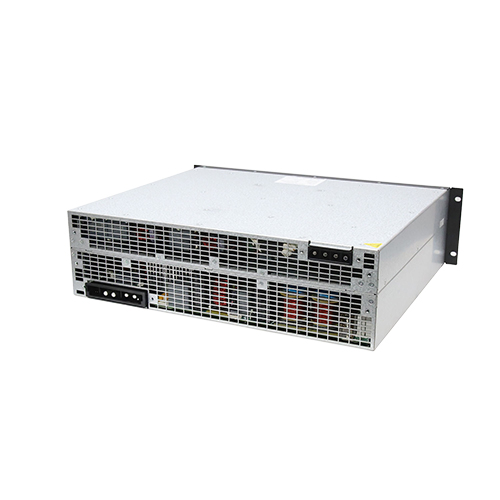

The MXR150060B-850 is designed to deliver exceptional performance, reliability, and flexibility for high-power DC fast charging and energy conversion applications. Engineered for next-generation infrastructure, this 60kW power module supports a wide AC input voltage range (600–850Vac), enabling seamless integration into ultra-high-voltage charging networks and renewable energy systems.

Built with advanced SiC (Silicon Carbide) technology, the MXR150060B-850 achieves over 97% peak efficiency and a power factor of 0.99, significantly reducing power loss and operating costs. Its low harmonic distortion (THD ≤3%) ensures stable grid interaction, making it ideal for commercial EV charging stations, electric bus depots, fleet charging hubs.

To meet the rigorous demands of outdoor and industrial environments, the module operates reliably from -40°C to +75°C and maintains full power output below 60°C. With a mean time between failures (MTBF) greater than 1 million hours, it provides long-term operational stability with minimal maintenance.

The CAN communication interface allows seamless connection with system controllers, enabling intelligent monitoring, remote control, and fault diagnostics. Compact in size — only 125mm in height and weighing less than 29kg — the MXR150060B-850 is optimized for high-density charger designs, saving valuable cabinet space and simplifying system integration.

Key Advantages

• Wide Input Range (600–850Vac): Compatible with ultra-high-voltage power grids and flexible for various charging infrastructure standards.
• High Output Voltage (up to 1500Vdc): Supports fast charging for passenger EVs, electric buses, and heavy-duty vehicles.
• Superior Power Quality: Power factor ≥0.99 and THD ≤3% ensure grid friendliness and energy efficiency.
• Exceptional Reliability: MTBF >1,000,000 hours and derating capability up to 75°C for extreme environments.
• Compact & Lightweight Design: Ideal for modular fast charger systems, providing easier installation and maintenance.
• Intelligent Control: CAN communication for system-level monitoring and smart charging management.

Typical Applications

• High-Power DC Fast Charging Stations (CCS, CHAdeMO, GB/T)
• Electric Bus and Truck Charging Infrastructure
• Fleet and Depot Charging Solutions
• Industrial Power Conversion Systems

Product Characteristic Curve
