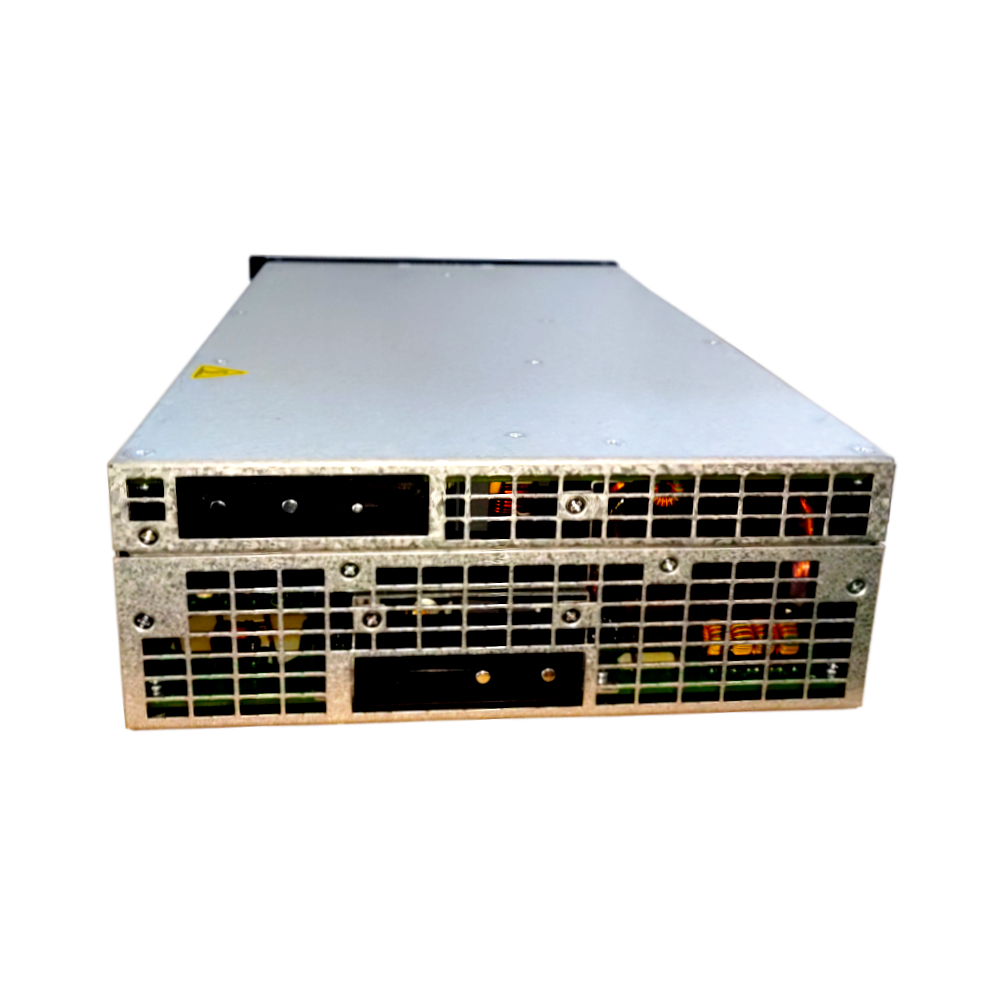

MXC95050B 20kw dc dc bi-directional module
The MXC95050B is a high-frequency isolated bi-directional DC-DC module offering a number of advantageous features, including an ultra-wide voltage range, ultra-high full-load operating temperature and ultra-high efficiency. The module also boasts strong protection and high power density. The MXC95050B is suitable for a wide range of applications, including energy storage, PV, ESS and charging, battery cascade utilization, data centers, and other multi-energy complementary scenarios.
-
Bidirectional dc/dc module
Model: MXC95050B
Bus side: 200~950Vdc/0~40A
Battery side: 200~950Vdc/0~50A
Rated power: 20kw
Characteristic Curve
Feature details
- Hot-plugging
Hot-plugging charging modules, easy installation and maintenance.
- Current sharing
Auto current sharing between modules, current imbalance less than 5%.
- Output current adjustment
Through external monitor module, current limiting point of module can be configured continuously from 0A to 50A (40A). Current on the battery side can be configured continuously in both charge and discharge mode.
- Output voltage adjustment
Through external monitor module, the output voltage of module can be configured continuously from 200Vdc to 950Vdc, and the minimum adjustment step is 0.1Vdc.
- Over/under voltage protection
- Over temperature protection
- Short circuit protection
-
-
Output Power20kw
-
DC Bus Side200~950Vdc
-
Input Current0~40A
-
Battery Side200~950Vdc
-
Current Range0~50 A
-
Voltage stabilized accuracy≤±0.5%
-
Current stabilized accuracy≤±1% (output load 20%~100% rated range)
-
Current Sharing Imbalance≤±5%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue-40℃～75℃, output derating above 55℃
-
Storage Temperature-40℃～+75℃
-
AltitudeNo derating below 2000m, When the altitude is above 1000m, the operating temperature decreases by 1℃ for each additional 100m.
-
MTBF>500000 hours
-
Size(W×D×H)226×376×85mm
-
Weight≤9.5kg
-
Efficiency(full load)>98.5%
-
Cooling ModeForced air cooling
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
IndicatorGreen: normal operation Yellow: alarm Red: fault LED digital tube
-
CertificationROHS
-
