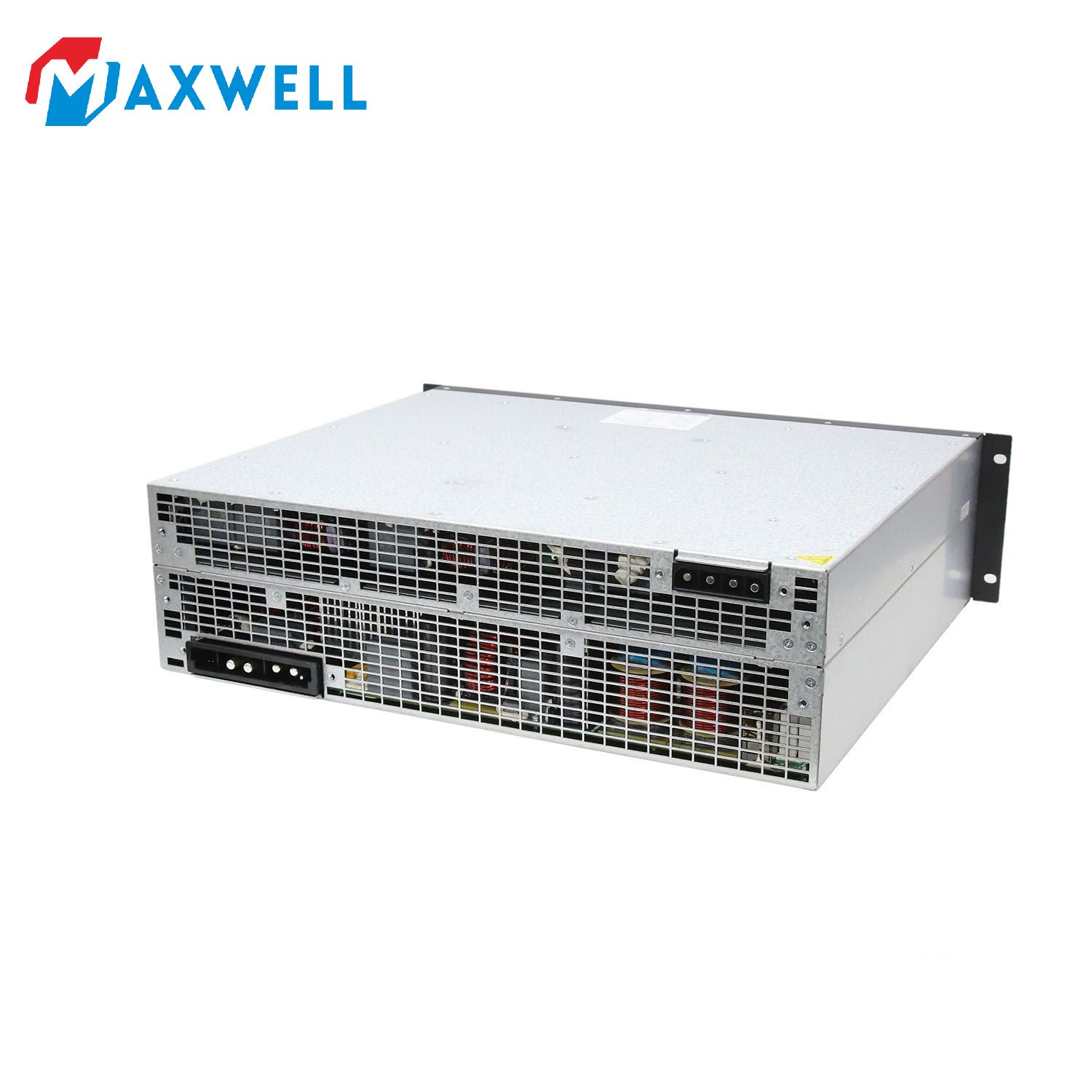

MXR150050B 50KW 1500V High power AC DC Charging Module
-
Characteristic Curve
MAIN FEATURES
- Low noise: support silent mode setting, provide multiple levels (55dB, 60dB)
- High protection: sensitive components are isolated from the air duct
- Ultra-high efficiency: >97%
- Ultra-high power density (40W/in³)
- Ultra-high reliability (MTBF>1,000,000h)
- Ultra-high power factor (0.99)
- Compatible with AC input and DC input
- Wide working temperature range: -40℃~+75℃
- Wide input voltage range: 260VAC~530VAC
- Wide output voltage range: 0 ~ 1500VDC
- Wide output constant power range: 385VDC~1500VDC@50kW
- Support hot swap function
- With perfect intelligent protection function
- Support output back-feed isolation
- Support CAN bus communication and group setting
- Support LED digital tube display and button setting
- Meet the requirements of CE directives, EMI meets the CLASSB Limit
Application Scenarios
The MXR150050B is well-suited for public EV charging stations, including highway service areas, urban charging hubs, and commercial fleet depots. Multiple chargers can share the same power module, enabling intelligent power distribution and maximizing system utilization. In hydrogen production, the module provides high-voltage DC power for electrolyzers. With up to 1500V output, it reduces current levels, minimizes conductor loss and heat generation, and improves overall system efficiency.Technical Features
-
Supports silent mode, keeping noise below 55dB for deployment in noise-sensitive or crowded public environments.
-
Integrated smart control functions including voltage regulation, current limiting, and start-stop control via CAN bus communication, ensuring seamless monitoring and remote management.
-
Designed for three-phase four-wire (A/B/C+PE) input with a wide input voltage range, allowing stable operation in diverse grid conditions.
Customer Value & Advantages
-
Cost-efficient: A single module supports up to 50kW, reducing equipment count and simplifying wiring for small to mid-sized charging stations or hydrogen systems.
-
High efficiency & reliability: 1500V output enables lower current at high power, reducing thermal stress and extending system lifetime.
-
Future-ready: Supports intelligent charging networks and meets the growing demand for fast, reliable, and safe charging infrastructure.
-
-
Output Power50kW
-
Input Voltage260-530Vac, three-phase + PE
-
Input Current≤95A
-
Grid Frequency45-65Hz
-
Power Factor≥0.99(Load≥50%)
-
Output Voltage Range0~1500Vdc
-
Output Current Range0~134A
-
Voltage stabilized accuracy≤±0.3%
-
Current stabilized accuracy≤±0.3%
-
Ripple Peak to Peak≤0.3%
-
Operating Temperatue–40°C to +75°C (Output power derating at rated output voltage when the temperature is higher than 55°C.)
-
Storage Temperature-40℃~80℃
-
Relative Humidity≤95% RH without condensation
-
Altitude≤2000m (derating can be used above 2000m)
-
Size(W×D×H)440×380×125mm
-
Efficiency(full load)>97%
-
Cooling ModeForced air cooling
-
Standby Power consumption≤13.5W
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
IndicatorGreen: normal operation Yellow: alarm Red: fault LED digital tube
-
ITHD≤5%(Load≥50%)
-
Weight≤23kg
-
MTBF>1000000 hours
-
CertificationCE
-
