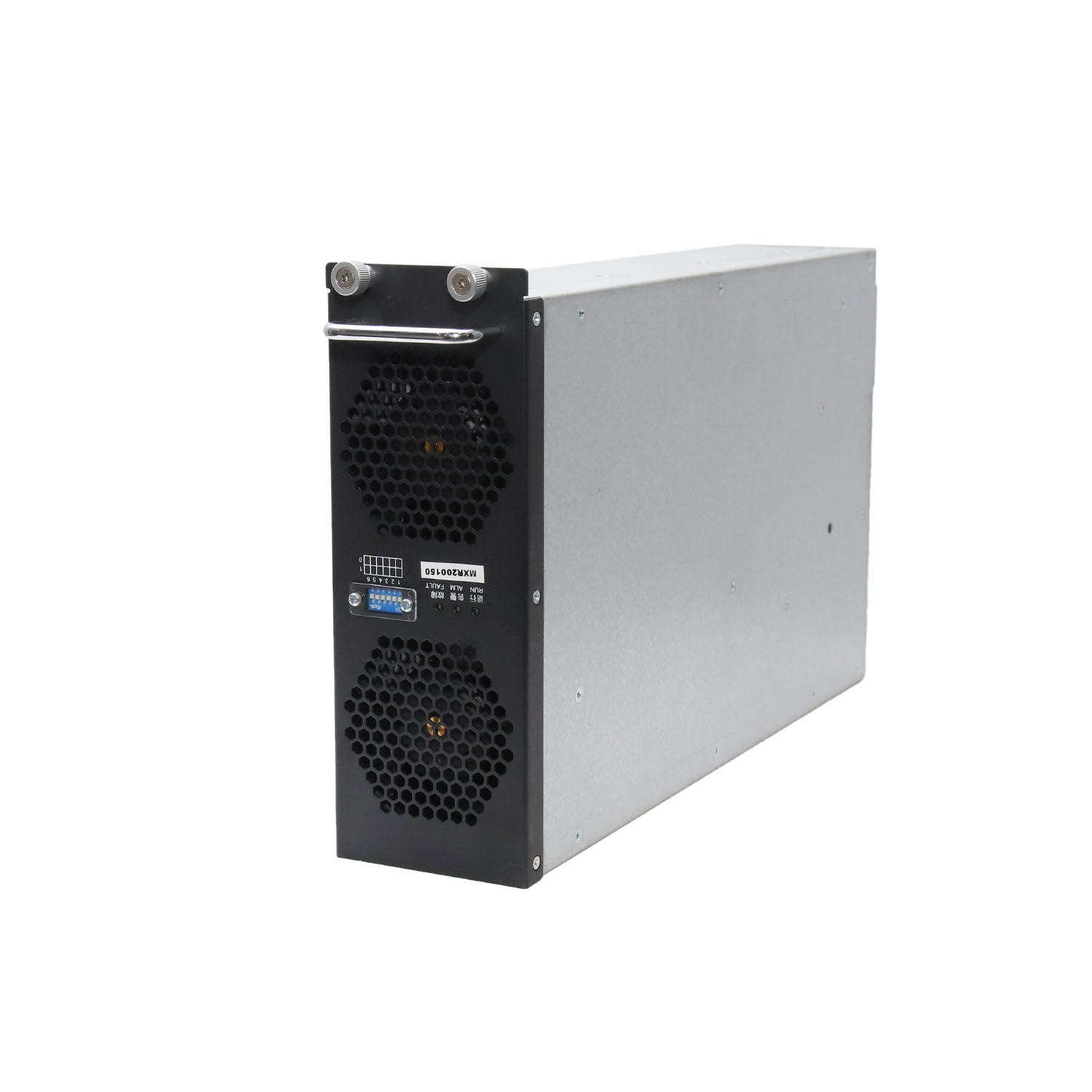

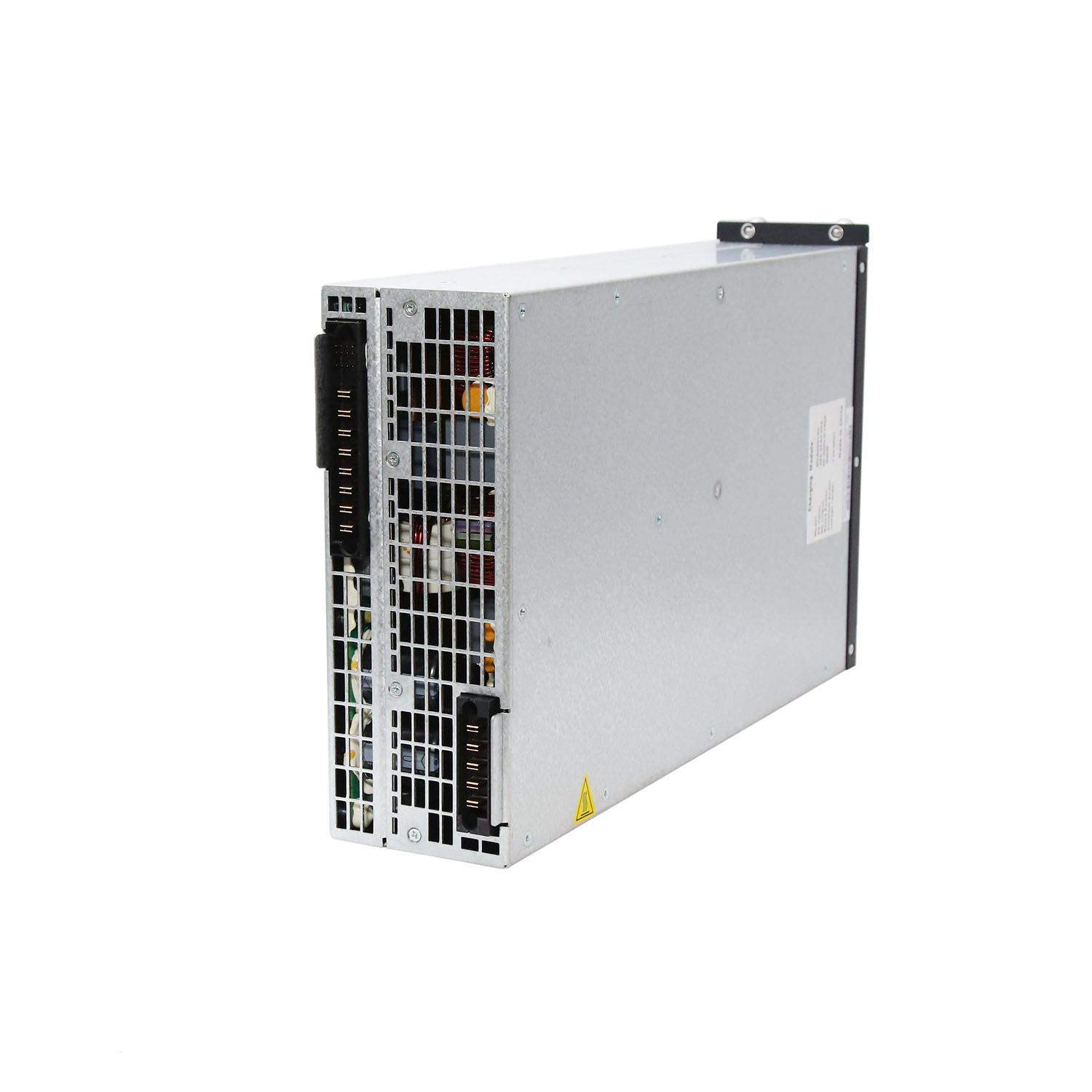

MXR200150 EV charging module
-
Excellent advantages
>Ultra-wide
Output voltage range 20v-100v
The ultra-wide output voltage range of MXR200150 can meet the charging requirements of low voltage.
>Super charging current 150A
The super charging current of MXR200150 can greatly reduce the charging time.Main features
Wide output voltage range, 20-100VDC, suitable for low-speed EVs;Wide operating temperature range at full power,-40℃~50℃;
Full load efficiency is higher than 95%, high efficiency in the whole working range, and more energy saving;
Ultra-low standby power consumption, the whole series of produces are controlled within 8W;
The current in the low-voltage area does not shrink, and the charging speed is faster;
The module is built with residual pressure relief loop to reduce system cost and improve system reliability.Characteristic Curve
-
-
Output Power20kw @output voltage ≥134Vdc
-
Input Voltage260-475Vac, three-phase + PE
-
Input Current<40A
-
Grid Frequency45-65Hz
-
Power Factor≥0.99
-
ITHD≤5%
-
Voltage Range20-200Vdc, default value: 100Vdc
-
Current Range0~150A
-
Voltage stabilized accuracy≤±0.5%
-
Current stabilized accuracy≤±1%
-
Current Sharing Imbalance≤±5%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue-40℃～75℃, output derating above 50℃
-
Storage Temperature-40℃～+75℃
-
Relative Humidity≤95% RH without condensation
-
AltitudeNo derating below 2000m,When the altitude is above 1000m, it needs to set the actual altitude value, the working temperature decreases by 1℃ for each additional 100 m
-
MTBF>500000 hours
-
Size(W×D×H)227×395×84mm
-
Weight≤11kg
-
Efficiency(full load)>95.5%
-
Cooling ModeFan cooling
-
Standby Power consumption<8W
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
IndicatorGreen: normal operation Yellow: alarm Red: fault
-
CertificationCE
-
